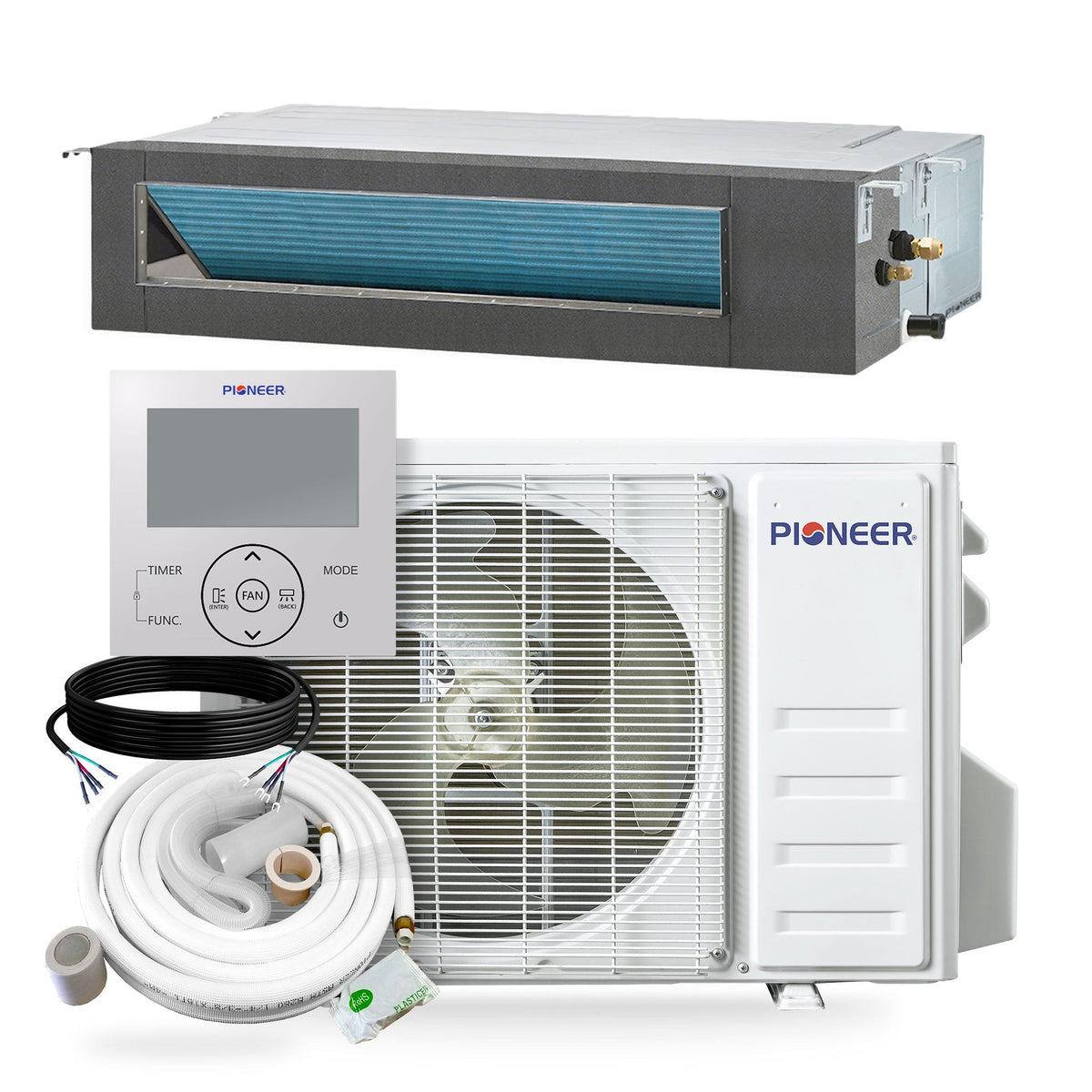

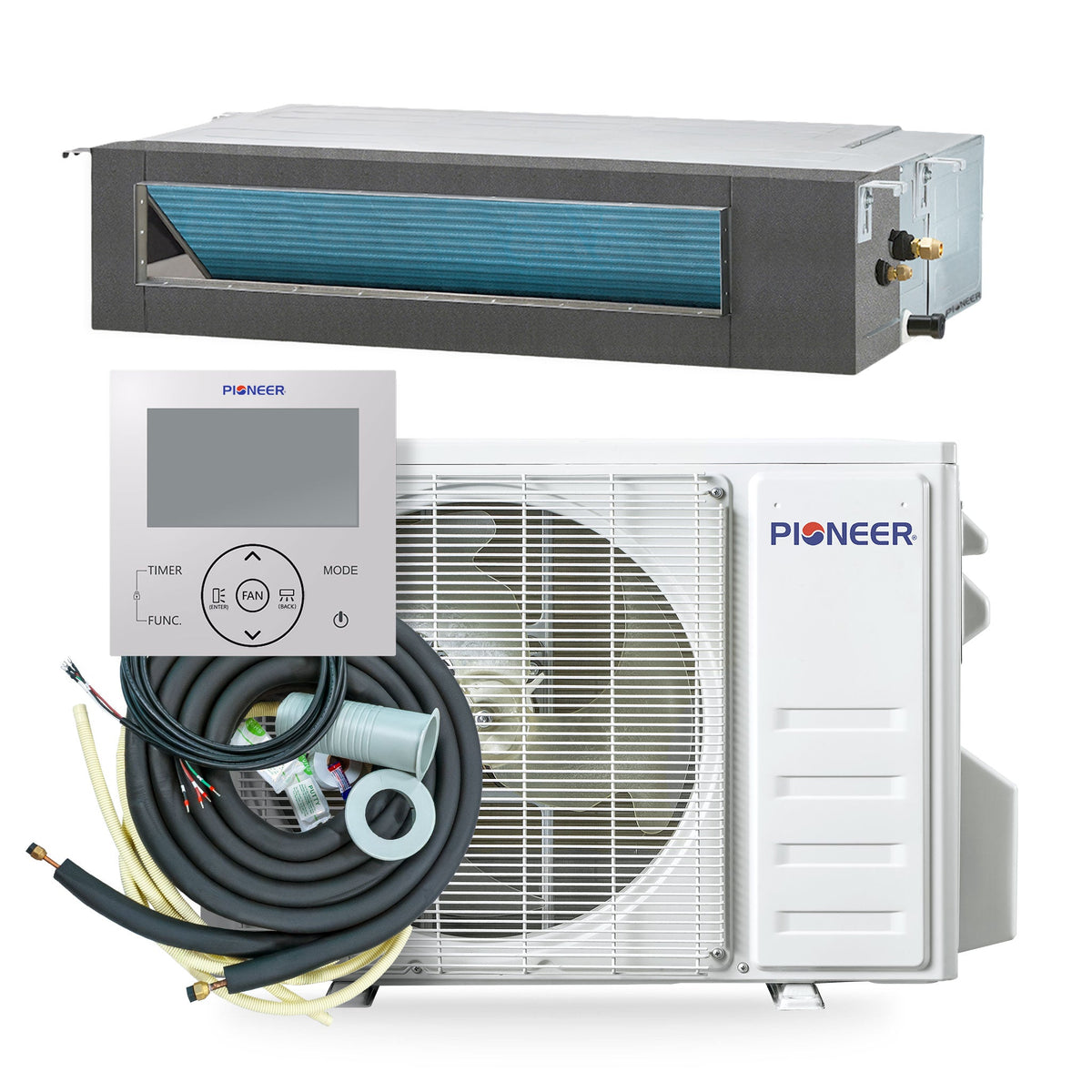

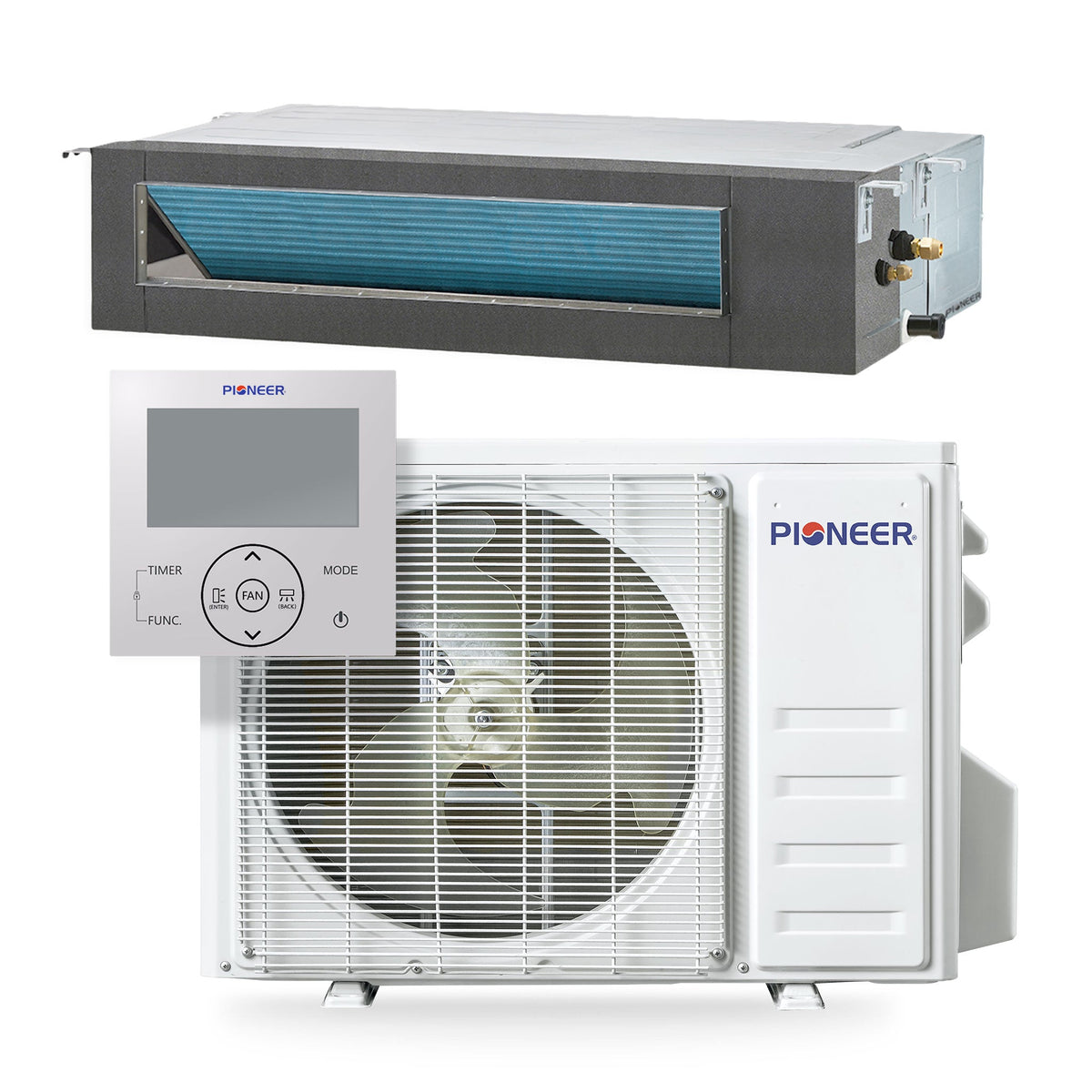

17,000 BTU Concealed Ducted Mini-Split Heat Pump System – 20 SEER2, 230V

Maintain a comfortable, refined atmosphere in your solarium or sunroom with this 17,000 BTU concealed ducted mini-split system. Featuring inverter technology and heat pump functionality, it provides both heating and cooling while allowing the indoor unit to remain hidden from view. The 20 SEER2 efficiency rating supports energy-conscious operation, making it an attractive climate control solution for elegant interiors where a clean, uncluttered appearance is essential. Confirm ductwork, room size, electrical requirements, and installation needs before purchasing.

Summary

• High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
• Cooling capacity: 17,000 BTU/H with 20.3 SEER2 / 11.0 EER2 efficiency
• Heating capacity: 18,000 BTU/H with 10.0 HSPF2 / 2.8 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Submittal Sheet

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 17,000 BTU/h
  • Cooling Capacity Range: 6,000~19,400 BTU/h
  • Cooling SEER2: 20.3 BTU/W.h
  • Cooling EER2: 11.0 BTU/W.h
  • Heating Rated Capacity: 18,000 BTU/h
  • Heating Capacity Range: 4,000~21,400 BTU/h
  • Heating HSPF2 (Region IV/V): 10.0 / 9.2 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 2.8 / 1.8 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 500~750 sq ft
  • Minimum Room Size: 51 sq ft
  • Piping Diameter: 1/2" (Gas) / 1/4" (Liquid)
  • AHRI Reference: 217048764
• Indoor Unit
  • Part Number: RT018GLSILCFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 500 / 426 / 370 / 300 / 283 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 41 / 38 / 36 dB(A)
  • Product Dimensions (WDH): 35"-1/2 x 19"-1/4 x 7"-7/8 Inches
  • Carton Dimensions (WDH): 44"-1/8 x 21"-7/8 x 9"-7/8 Inches
  • Net / Gross Weight: 39.7 / 46.3 lbs

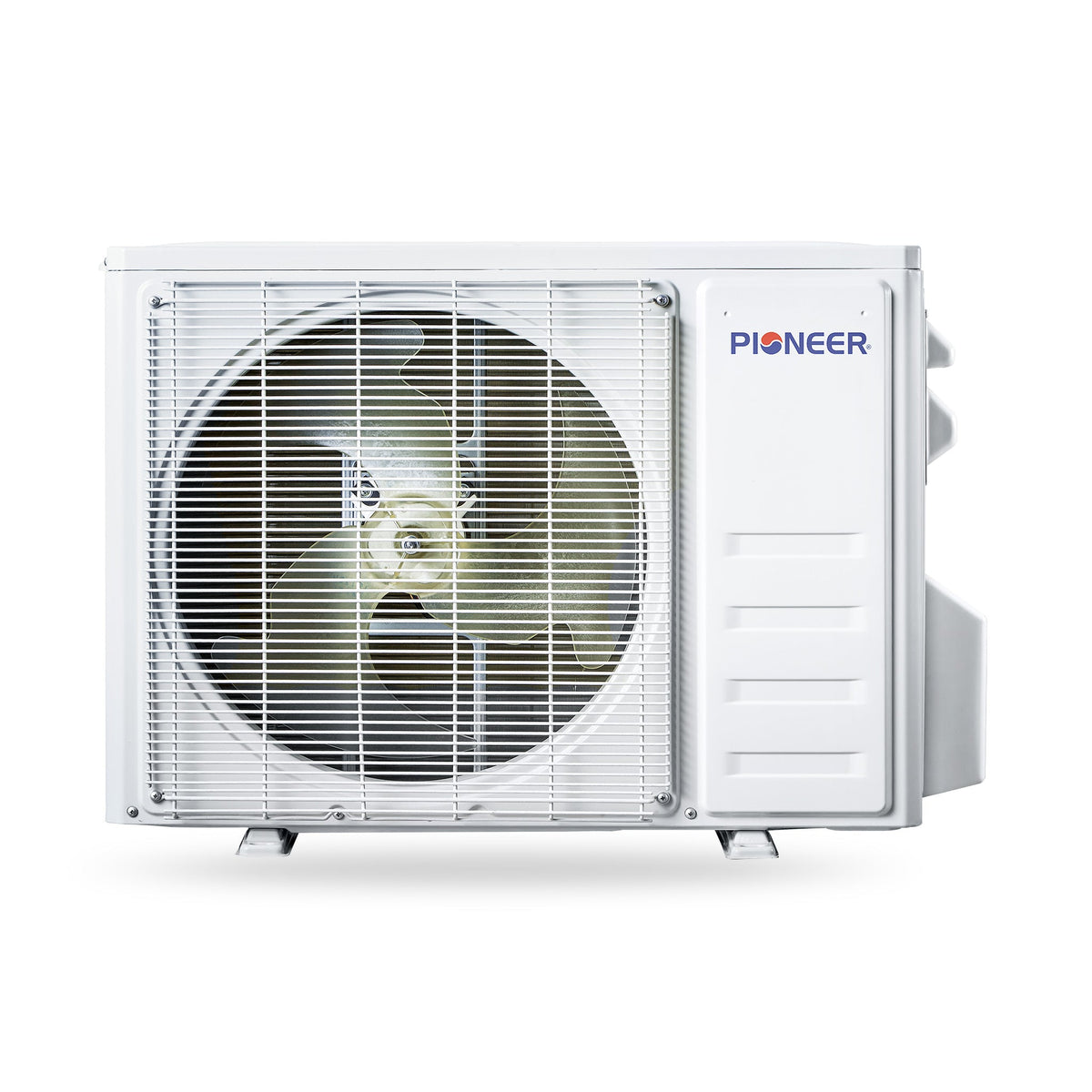

• Outdoor Unit
  • Part Number: YN018GLSI24RPG
  • Breaker Needed: 20A (double-pole)
  • Sound Level: 53 dB(A)
  • Net Dimensions (WDH): 36"-1/2 x 15" x 27"-1/2 Inches
  • Carton Dimensions (WDH): 37"-3/8 x 16"-1/2 x 28"-7/8 Inches
  • Net / Gross Weight: 90.4 / 97.0 lbs

Dimension Chart
